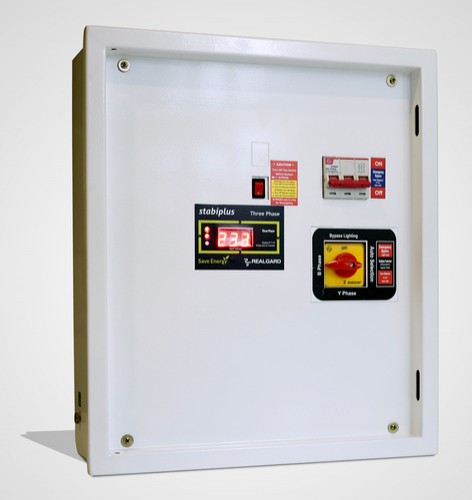

TP 63 PREMIUM
TP 63 PREMIUM
Model – Control box
Dimension - 423 x 438 x 147
Application – Three Phase
Maximum Load details-Lighting- 1.5KW- 6A
Power- 15KW- 63A(maximum up to 4.5 ton A/c) Refrigerator- 2kw – 8A. Working range for Lighting load
Input voltage range-130V -290 V,
Output voltage range– 130V-260V(maximum out put 260V)
Low voltage trip at below <130V
High voltage trip at above >290V
. Working range for Power load
Input voltage range -160V-260 V, Output voltage range - 160V-260V Low voltage trip at below <160V High voltage trip at above >260V
. Working range for Refrigerator
Input voltage range -160V-260 V, Output voltage range - 160V-260V Low voltage trip at below <160V High voltage trip at above >260V
. Time delay in seconds for turn on protection
Lighting and Power – 6s Refrigerator- 180S
. Protection from Neutral cut
Available
. Automatic Phase selection
Available for Lighting & Power circuits
. Bypass arrangements
Available for Lighting and Power
. Input voltage display
Digital Display Available
. Dimension in mm
Length - 423
Height - 438
Depth – 147
